trifAQUEDUCT

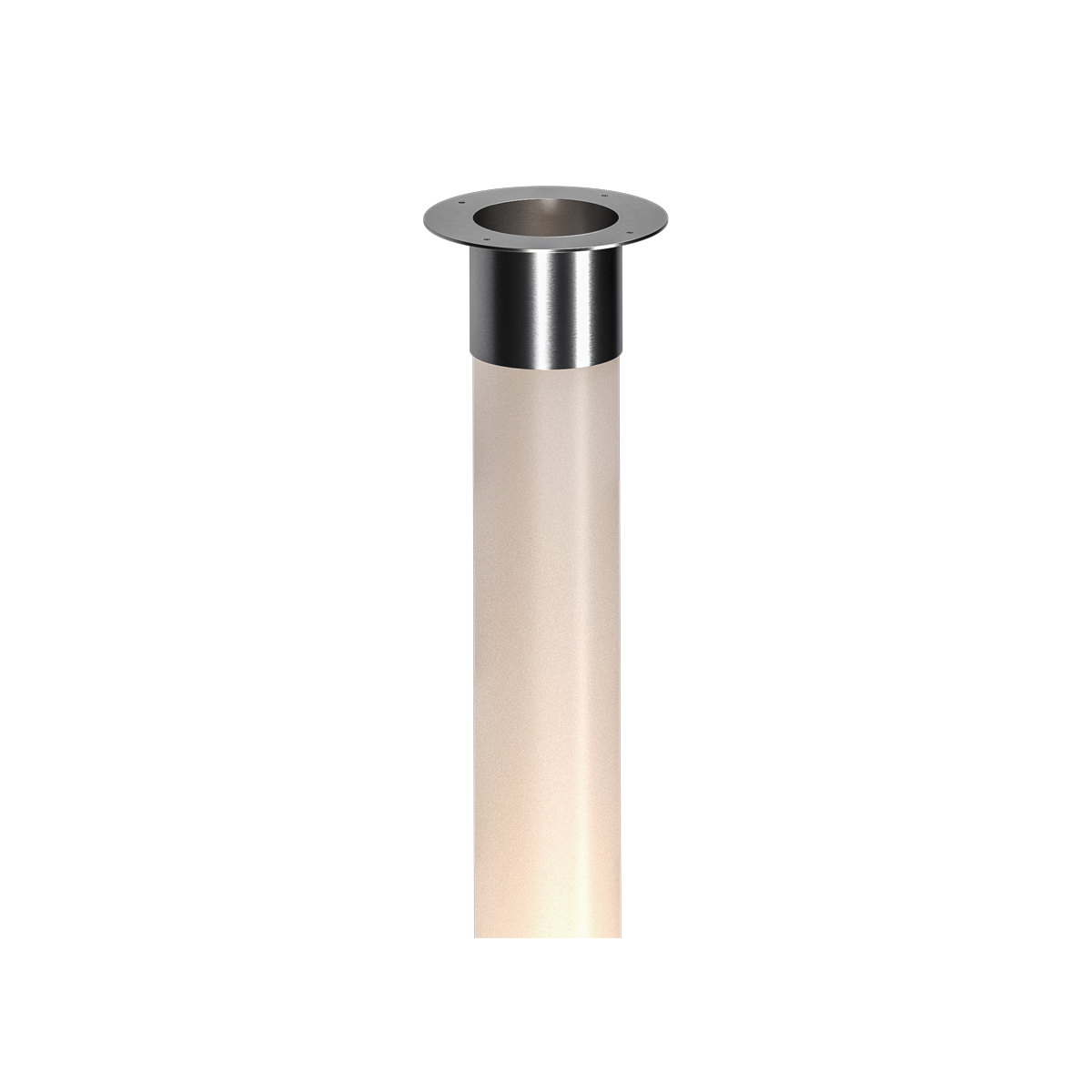

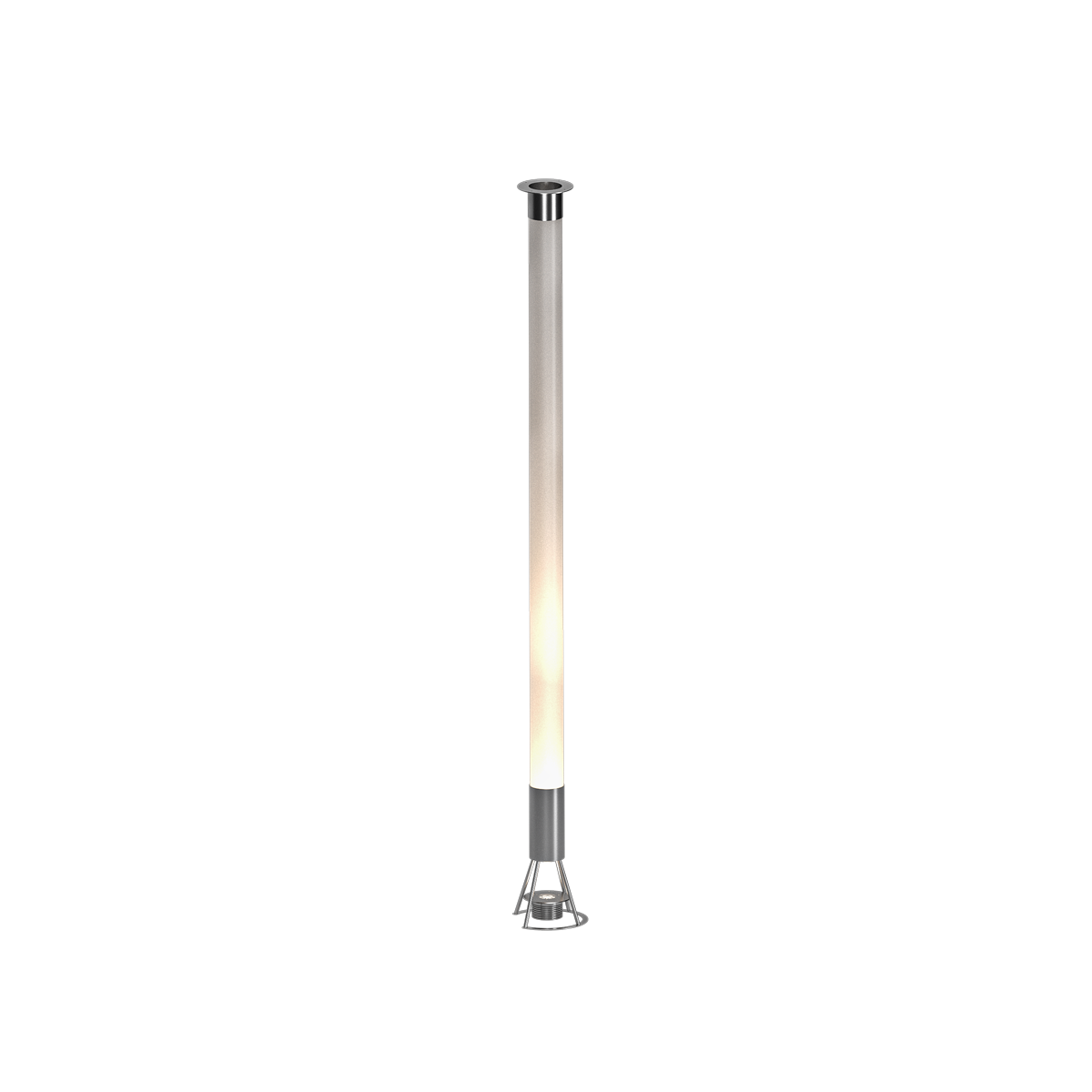

Part of the roof drainage system designed as a transparent pipe with spectacular lighting. With TRIF AQUEDUCT, bad weather makes for an exquisite facade decoration.

TECHNICAL SPECIFICATIONS

Color temperature: 3000K/4000K/R/G/B
Power: 1,2 / 2,4 / 3,6 / 4,8 / 6,0 / 7,2 / 8,4 W
Power supply: DC 24 V
Luminous flux: up 204/408/612/816/1020/1225/1428 lm
LED luminous efficacy: up to 170 lm/W
Optics: 15⁰, 30⁰, 45⁰, 60⁰, 90⁰
CRI: >90
Protection class: IP69K
Impact resistance: IK10
Operating temperature: From -60°C to +50°C
Material: Stainless steel, aluminium AMG 5(6), Plexiglas®
Lifetime: Up to 100000 hours

The TRIF AQUEDUCT is a roof drainage system component made from a modern impact-resistant material – Plexiglas. The transparent polymethyl acrylate is resistant to UV rays and pollen. Even under the influence of these factors, the material won't turn yellow or green. In addition, Plexiglas boasts a high strength factor and is capable of withstanding even severe cold. Rest assured the TRIF AQUEDUCT will not burst when it's freezing cold.

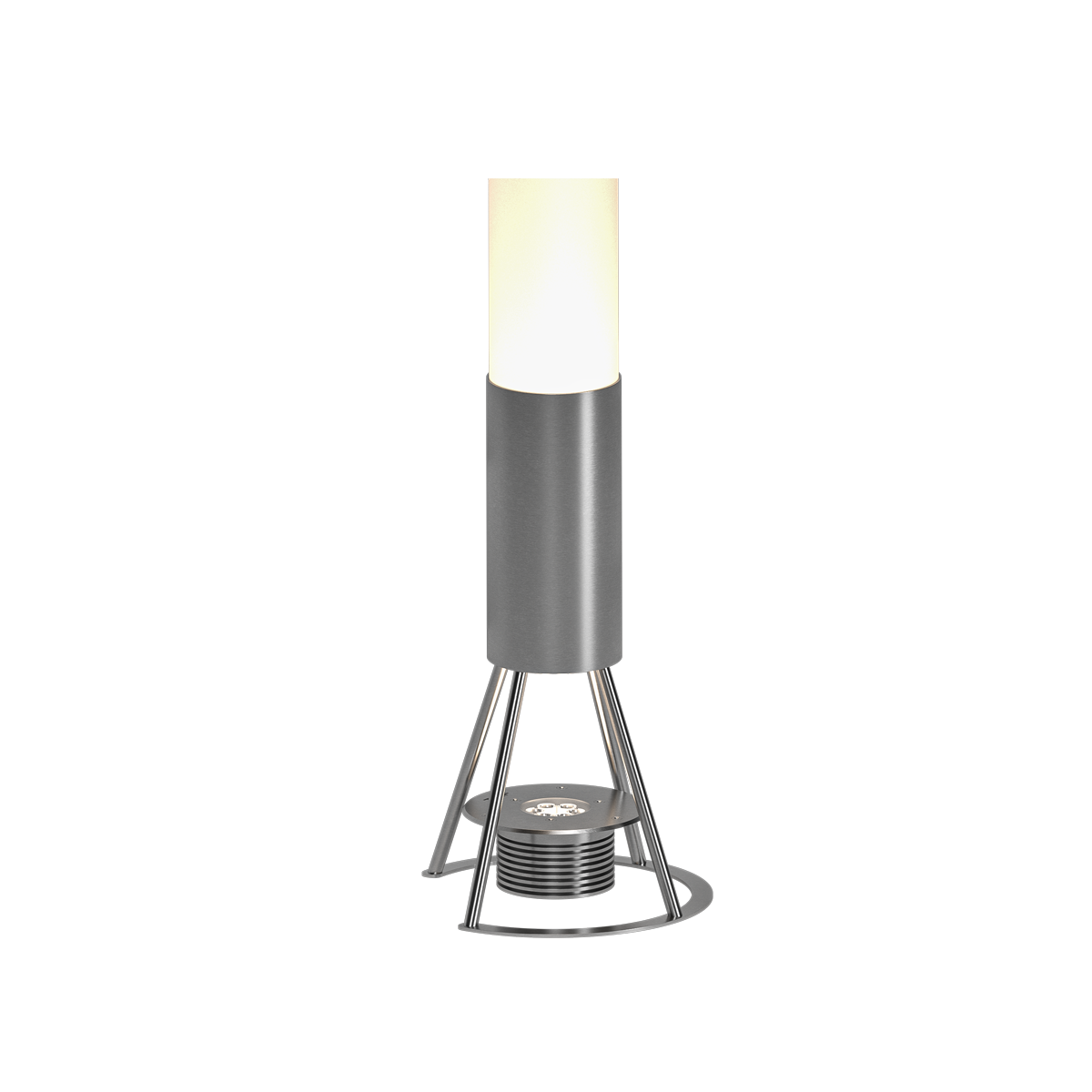

Elements of this system are attached to the facade using polished stainless steel sleeves – the structure appears durable, reliable, but also lightweight. Similar sleeves attach it to the eaves overhang, creating a smooth transition from varied overhang materials to the transparent drainage components. The water flowing down creates beautiful swirls that are visible through the transparent Plexiglas. The ground lighting further accentuates this mesmerizing visual effect. The TRIF JUPITER GROUND built-in luminaires are what provides the ground illumination. This model boasts a high degree of moisture resistance in accordance with the IP69K standard. The service life of the ground lamp is 100,000 hours. On top of that, the lighting fixture remains operational even at extreme temperatures, ranging from -60° C to +50° C.
